Electric Rapid Deployment Patrol Cart with Foldable Cargo Walls for Disaster Rescue Operations
Regular price
$5,355.00
Sale price
$5,355.00
Regular price
$5,355.00
Unit price
-
Estimated Delivery:Mar 11 - Mar 15
-
Free Shipping & Returns: On all orders over $75
Electric Rapid Deployment Patrol Cart with Foldable Cargo Walls for Disaster Rescue Operations
Product description
Shipping & Return
Product Description
Specification
|
Main technical parameters
|
|
Vehicle basic configuration table
|
||
|
model：
|
patrol car
|
1. Body: high-strength metal material + steel frame + sheet metal door
|
||
|
Number of passengers：
|
6-8 persons (including drivers)
|
2. Chassis: enhance the chassis of the micro car and optimize the anti-rust paint treatment
|
||
|
Dimensions: Length x Width x Height
|
3304*1652*1984mm
|
3. Front windshield: special tempered glass for automobiles, equipped with windshield wiper.
|
||
|
complete vehicle kerb mass：
|
750kg
|

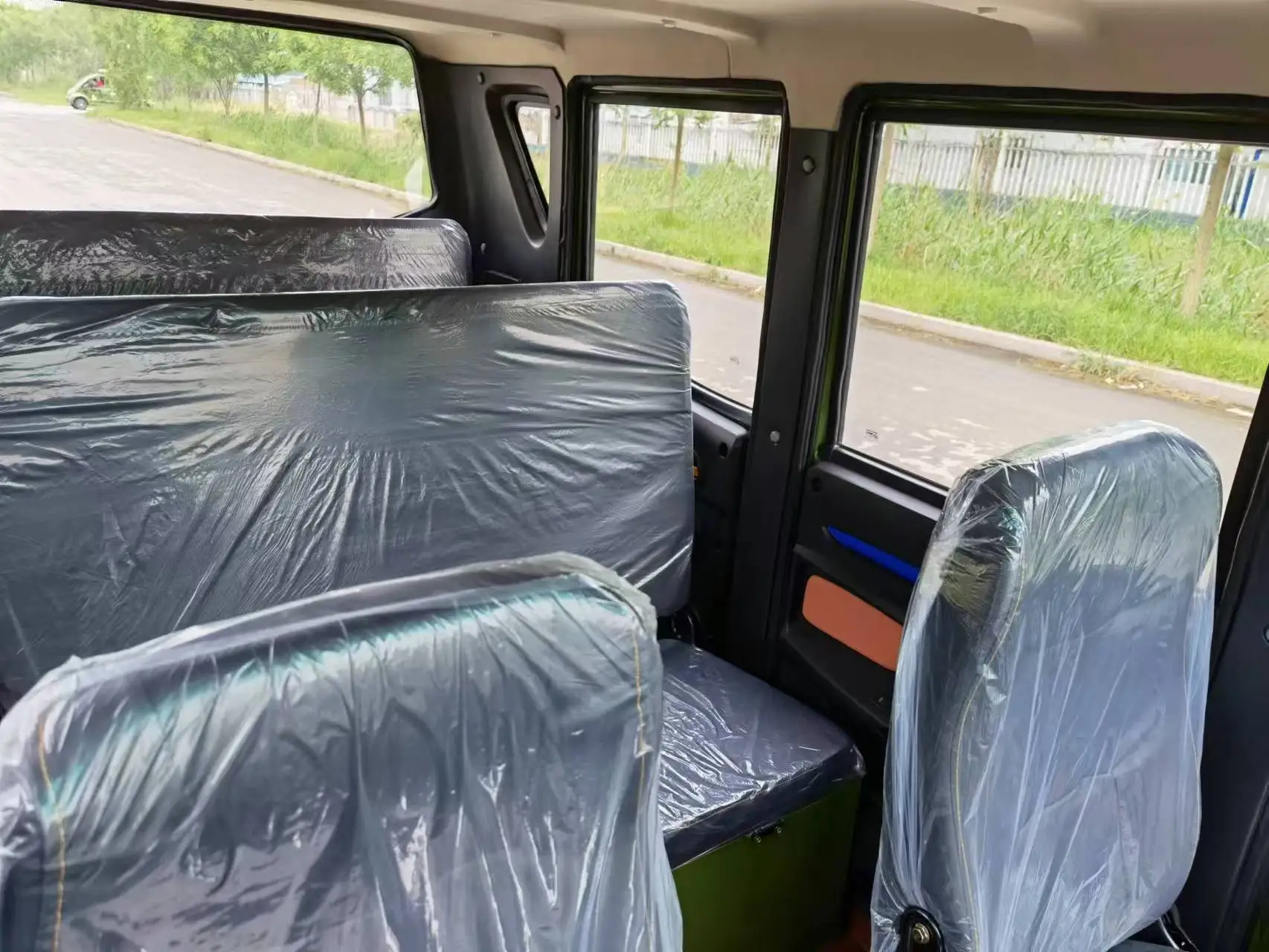

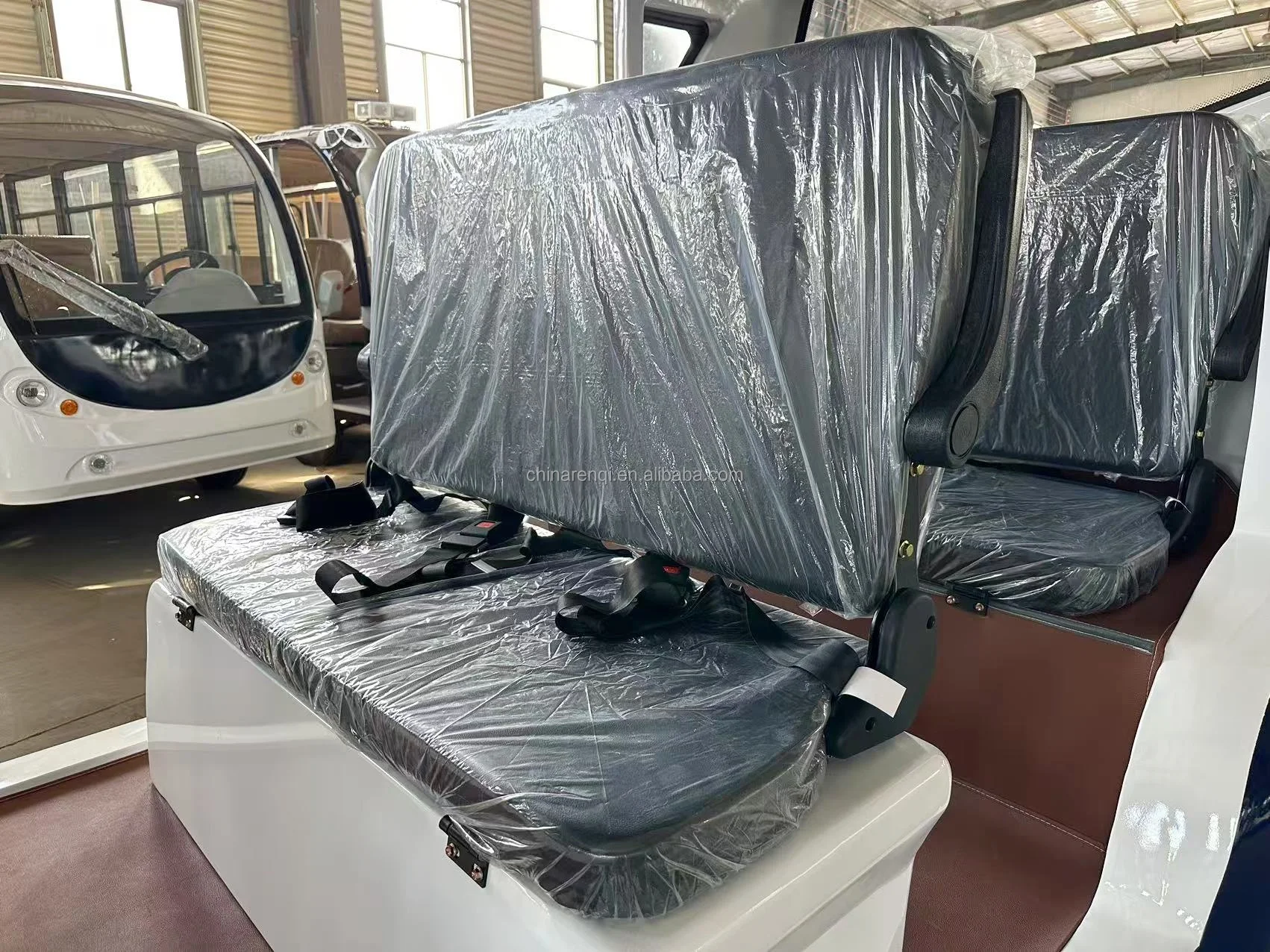

4. Seat: advanced simulation leather seat
|
||
|
Rated load：
|
850kg
|
5. Floor: non-skid floor leather.
|
||
|
tyre
|
155/65 R13
|

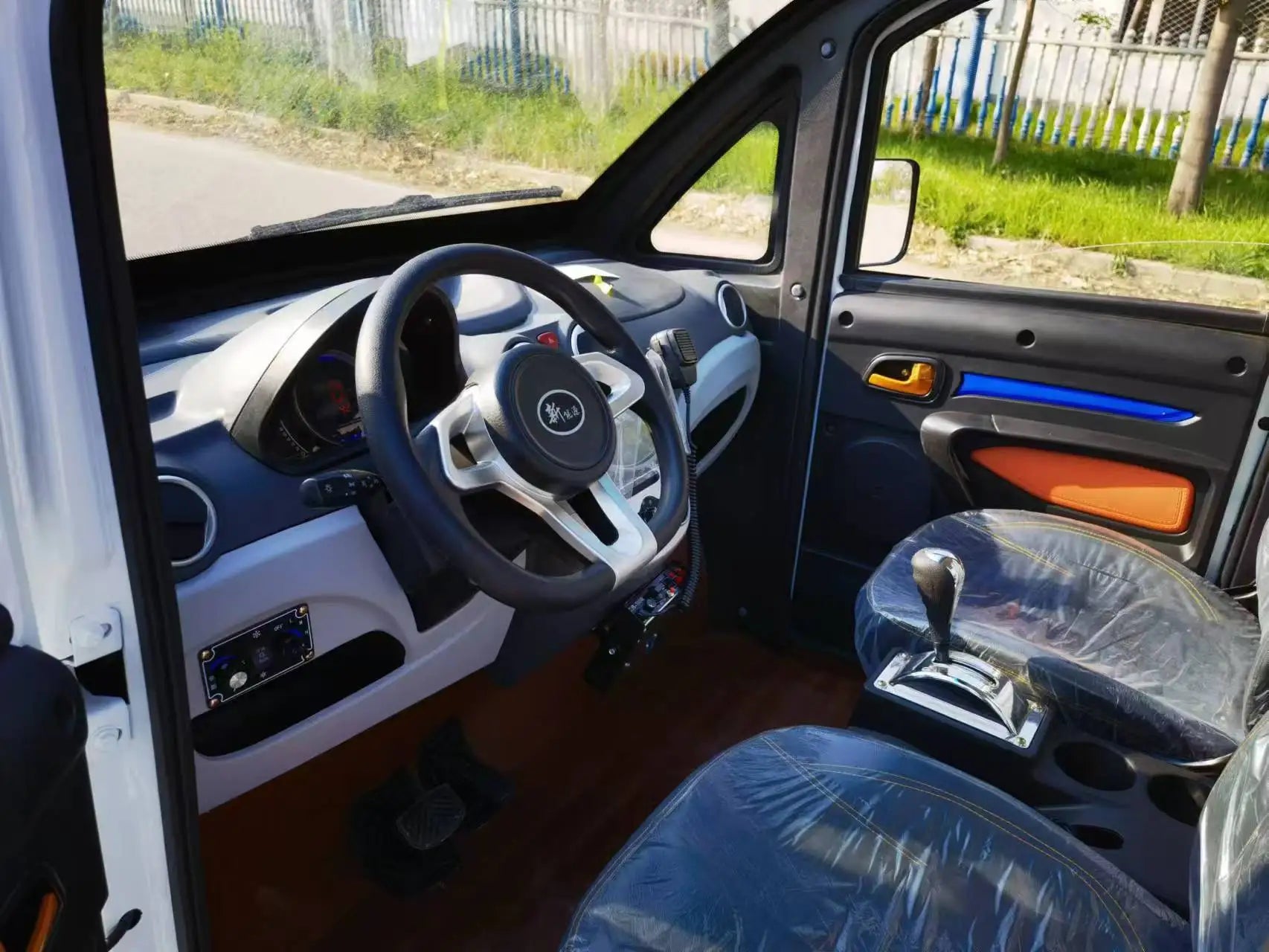

6. Instrument panel: digital instrument panel, combined switch, power indicator, steering indicator, steering beep.
|
||
|
endurance mileage
|
About 800KM
|
|
||
|
charging interval
|
8-10小时hours
|
7. Sound system: radio, SD card, MP5 player with audio.
|
||
|
Minimum ground clearance
|
235mm
|
8. Direction system: the left and right double push gear rack steering system
|
||
|
Max. vehicle speed (full load)
|
28km/h
|
9. Light / speaker: 60V / 12V-400W front light lamp, turn signal lamp, rear taillight, horn.
|
||
|
braking length
|
≤5m
|
10. Optional steering wheel assist function
|
||
|
minimum turning radius
|
4000mm
|

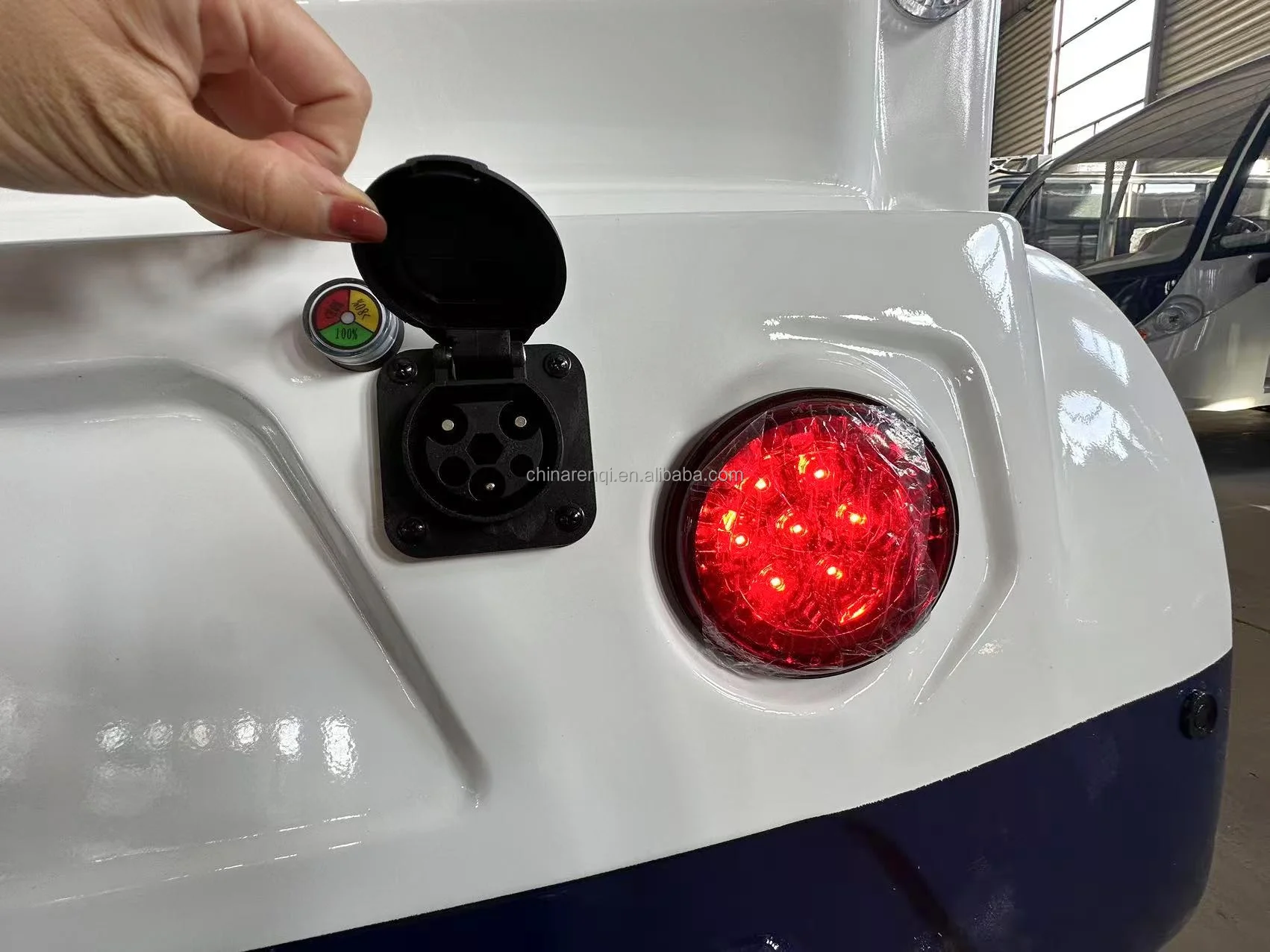

11. Charger: the high-frequency pulse computer controls the intelligent charger, which automatically stops after charging, which
can effectively prolong the battery life. |
||
|
Maximum ramp level (full load)
|
≥25%
|
|
||
|
Parking capacity (no-load)
|
25%
|
12. Front axle and suspension: McPherson independent suspension.
|
||
|
Motor brand and rated power
|
Depuda.3.5KW
|
13. Rear bridge and suspension: integral rear bridge + non-independent suspension.
|
||
|
Battery brand
|
60V 100AH
|
14. Brake system: equipped with vacuum brake power, front and rear hub brake four-wheel hydraulic brake, braking system and
mechanical parking (hand brake), stronger safety and higher stability. |
||
|
Lighting voltage and power
|
12V/150W
|
|
||
|
Warning configuration
|
Horn light
|

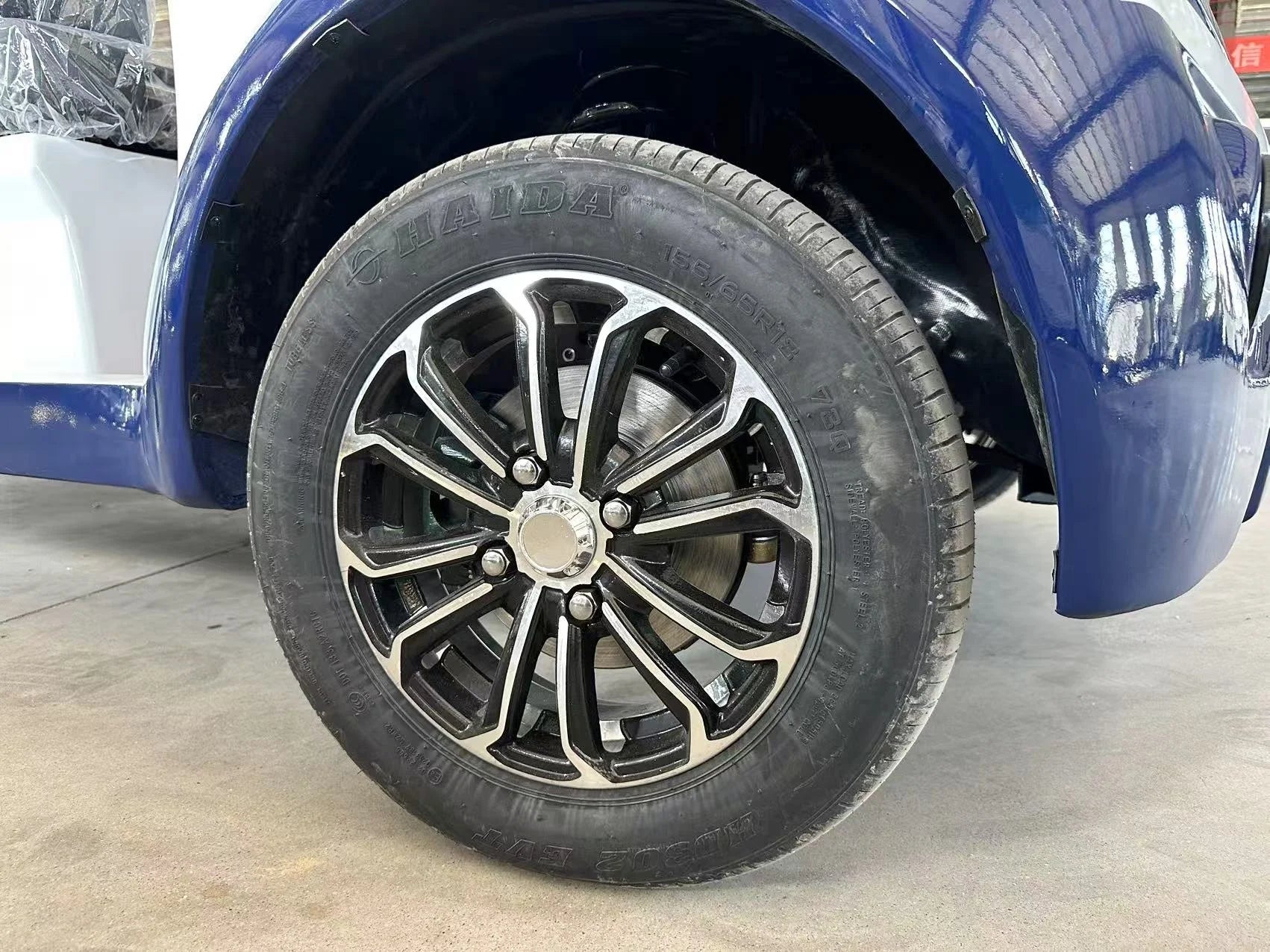

15. Tire: aluminum alloy mirror polished wheel hub + luxury vacuum tire.
|
||
|
dvantage: this car is sheet metal stamping body streamline beautiful
|
|
|
||
